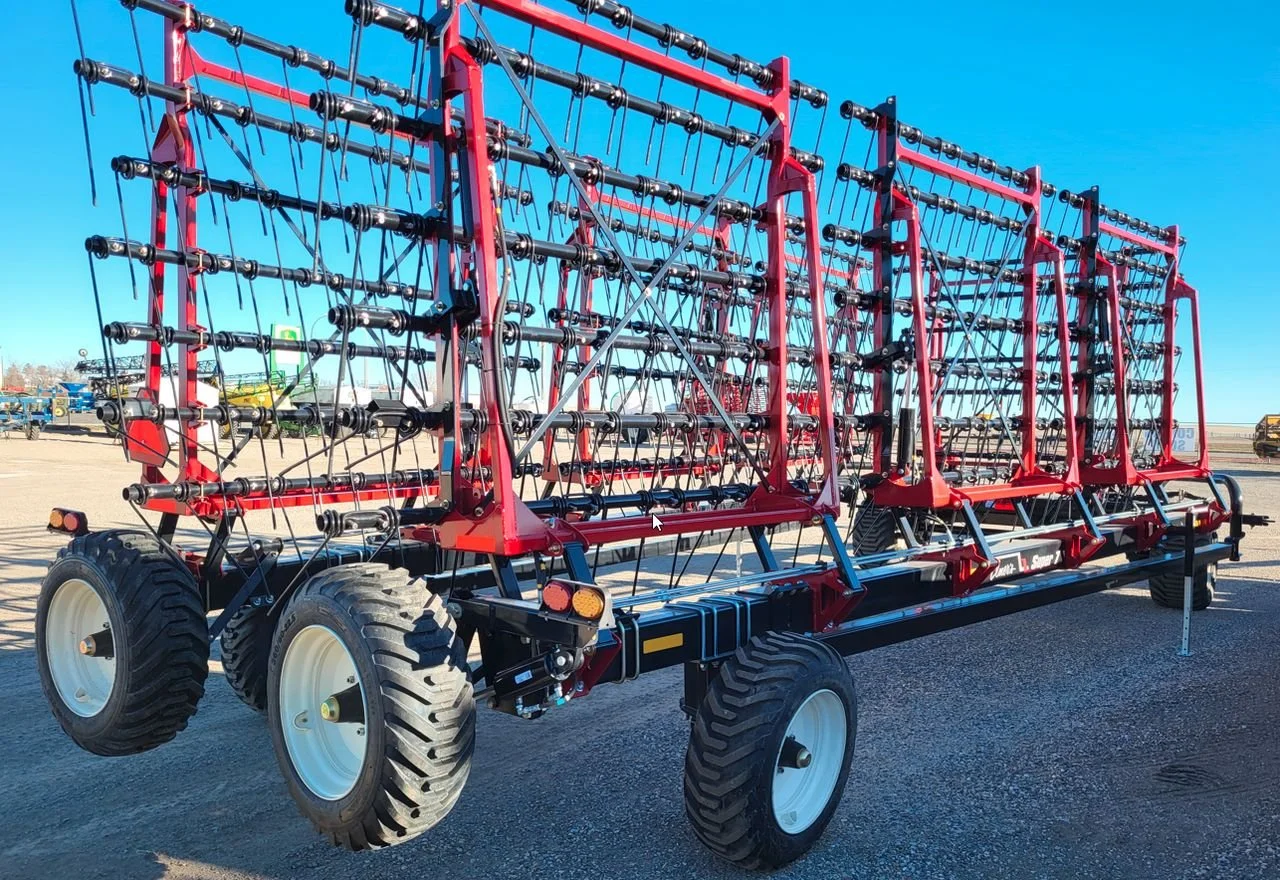

Elmer's MGF Super 7-70
The All-New Super 7 Harrow has a completely redesigned frame, sections and steerable wheels. Equipped with the in-cab, electronically set and hydraulically actuated Dynamic Ground Pressure and 26 inches of independent vertical section motion, it allows operators to adjust on the go. It also maintains constant down pressure regardless of the terrain, providing the operator with consistent ground contact, pressure, and finish.
70’ Working width
7 Harrow sections with 14” spacing
294 total tines
1/2” Tine diameter & 22” length
15’ Transport width
90°-40° Tine angle adjustments
550/45 – 22.5 Front tires & 360/60-22.5 rear tires
New Secure Lock hydraulic locking system with solid pull arm design (ability to reverse)
3 Dimension Of Adjustability 1) Tine Angle 2) Down Pressure 3) Section Angle Control
The All-New Super 7 Harrow has a completely redesigned frame, sections and steerable wheels. Equipped with the in-cab, electronically set and hydraulically actuated Dynamic Ground Pressure and 26 inches of independent vertical section motion, it allows operators to adjust on the go. It also maintains constant down pressure regardless of the terrain, providing the operator with consistent ground contact, pressure, and finish.
70’ Working width
7 Harrow sections with 14” spacing
294 total tines
1/2” Tine diameter & 22” length
15’ Transport width
90°-40° Tine angle adjustments
550/45 – 22.5 Front tires & 360/60-22.5 rear tires
New Secure Lock hydraulic locking system with solid pull arm design (ability to reverse)
3 Dimension Of Adjustability 1) Tine Angle 2) Down Pressure 3) Section Angle Control
The All-New Super 7 Harrow has a completely redesigned frame, sections and steerable wheels. Equipped with the in-cab, electronically set and hydraulically actuated Dynamic Ground Pressure and 26 inches of independent vertical section motion, it allows operators to adjust on the go. It also maintains constant down pressure regardless of the terrain, providing the operator with consistent ground contact, pressure, and finish.
70’ Working width
7 Harrow sections with 14” spacing
294 total tines
1/2” Tine diameter & 22” length
15’ Transport width
90°-40° Tine angle adjustments
550/45 – 22.5 Front tires & 360/60-22.5 rear tires
New Secure Lock hydraulic locking system with solid pull arm design (ability to reverse)
3 Dimension Of Adjustability 1) Tine Angle 2) Down Pressure 3) Section Angle Control
-
10" x 10" Toolbar, Solid Pull Arms and refreshed SecureLock System equipped with spring-applied latches & cylinder-mounted interlocks eliminates the possibility of unlatching during operation or with hydraulic pressure loss.
-
Completely greaseless and equipped with MAXLIFE Hardened Harrow Tines – The MAX LIFE process infuses weld-embedded tungsten carbine onto the harrow tine allowing you to harrow in the toughest conditions without worrying about excessive tine wear.
-
Elmer’s 7 bar design combined with 1/2” hardened tines allows for more harrow action, chopping straw, spreading residue more evenly and incorporating seed and chemicals without compromising field finish.
